Downstream Equipment

Vacuum calibration tank

  • Pipe diameter: φ15-φ800mm (φ1/2”- φ30”)
  • Length of spray: 6000mm (20 feet)
  • Number of spray pipes: 4 or 6 depends on model type
  • Water pump capacity: 5.5kW to 10kW

Spray tank

  • Pipe diameter: φ15-φ800mm (φ1/2”- φ30”)
  • Length of spray: 6000mm (20 feet)
  • Number of spray nozzle: 4 or 6 depends on model type
  • Water pump capacity: 4kW to 7.5kW

Haul-off machine

  • Pipe diameter: φ15-φ800mm (φ1/2”- φ30”)
  • Tracks: 2 to 6 depends on model type
  • Contract length: 1500mm (60”) to 2200mm (90”) depends on model type
  • Speed: 0.1m to 15m per minute depends on model type
  • Maximum force: 15kN to 60kN depends on model type

Saw-off machine

  • Saw straight cutting – pipes/profiles
    • Pipe diameter: φ15-φ160mm (φ1/2”- φ6”)
    • Profile size: 100x80mm (4”x3”) to 180x160mm (7”x6”)
    • Motor: 1.5kW to 3.7kW depends on model type
    • Cutting type: Saw cut
    • Travel length: 1500mm (60”) to 1800mm (70”)
  • Planetary cutting units
    • Pipe diameter: φ50-φ800mm (φ2”- φ24”)
    • Motor: 2.2kW to 3.7kW
    • Travel type: Pneumatic or Motorized
    • Travel motor: 0.55kW to 0.75kW
    • Travel length: 1500mm (60”) to 1800mm (70”)
  • Swarfless cutting units
    • Pipe diameter: φ20-φ800mm (φ3/4”- φ24”)
    • Motor: 1.5kW to 5.5kW
    • Travel type: Pneumatic
    • Saw arm powered by: Pneumatic or Hydraulics depends on model type
    • Travel length: 1500mm (60”) to 1800mm (70”)
  • High speed fly cutter
    • Pipe diameter: φ15-φ160mm (φ1/2”- φ6”)
    • Motor: 1.5kW and 2.2kW
    • Travel type: Servo drive
    • Saw arm powered by: Hydro Pneumatic
    • Travel length: 1800mm (70”)
    • Speed: 20m to 30m per minute depends on model type

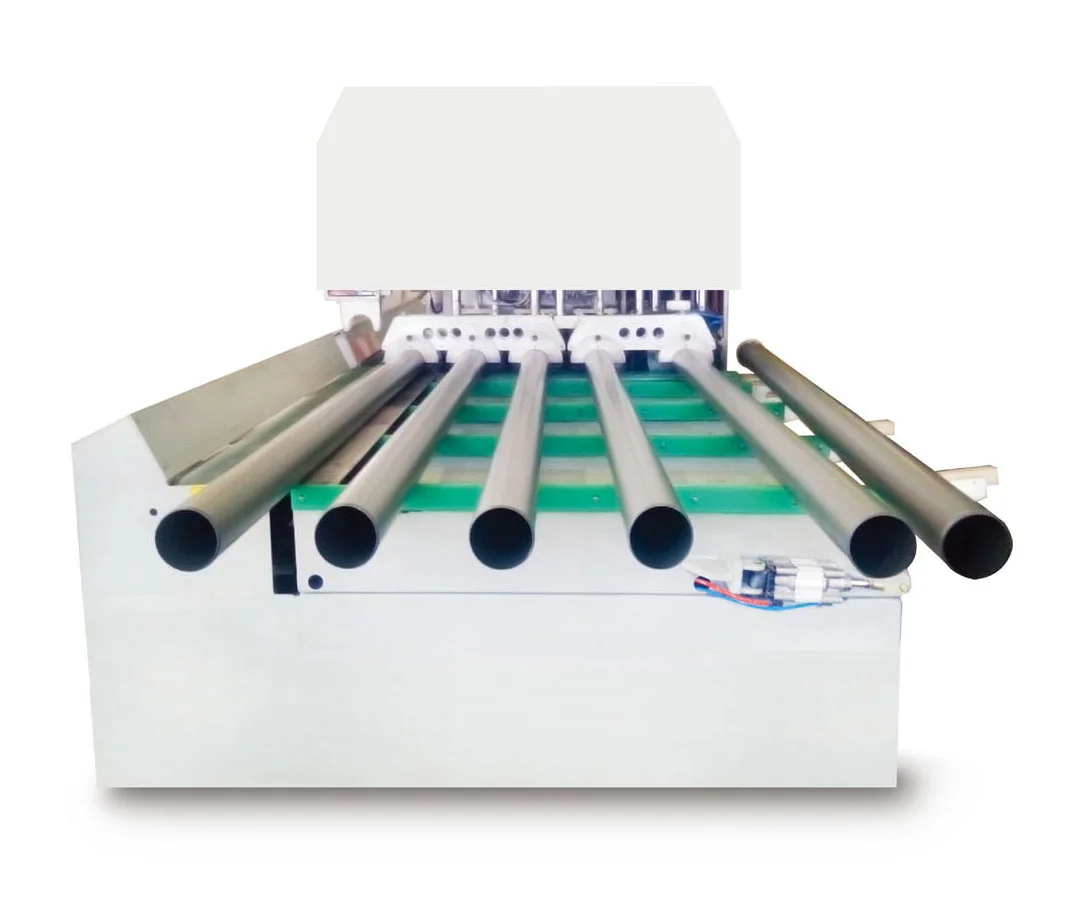

Belling machine

  • Belling machine with U-type, R-type, Blow-type, and chamfering
    • Automatic single pipe to four pipes belling machines
    • For PVC pipe or PP/PE pipe
    • Pipe diameter ranging from φ16mm (φ1/2”) to φ1000mm (φ36”)
    • Pipe length ranging from 3m to 8m depends on model type
    • Total power ranging from 13kW to 90kW depends on model type
    • Production speed ranging from 45s to 2500s depends on model type
    • Heating mode: oven-stainless steel heating tube and contact heating by aluminum block
    • Cooling mode: water-cooled, air-cooled
  • Corrugated pipe/Winding pipe belling machine (one heating oven)
    • Pipe diameter ranging from φ110mm (φ4”) to φ600mm (φ24”)
    • Total power ranging from 15.5kW to 53kW depends on model type
    • Production speed ranging from 50s to 1200s depends on model type
    • Heating mode: Oven-ceramic heating plate and stainless steel heating tube
    • Cooling mode: air-cooled or water-cooled
  • Thread cutting machine
    • Automatic and semi-automatic
    • Pipe diameter ranging from φ20mm (φ3/4”) to φ400mm (φ16”)
    • Total power ranging from 5.3kW to 8.5kW depends on model type
    • Production speed ranging from 30s to 80s depends on model type
    • Thread type: V-type outer thread, T-type outer thread, T-type inner thread
  • Automatic slotting machine
    • Pipe diameter ranging from φ55mm (φ2”) to φ400mm (φ16”)
    • Pipe length 2m to 6m
    • Total power ranging from 6.5kW to 8.5kW depends on model type
    • Production speed ranging from 20s to 80s depends on model type
    • Slot type: vertical and horizontal
